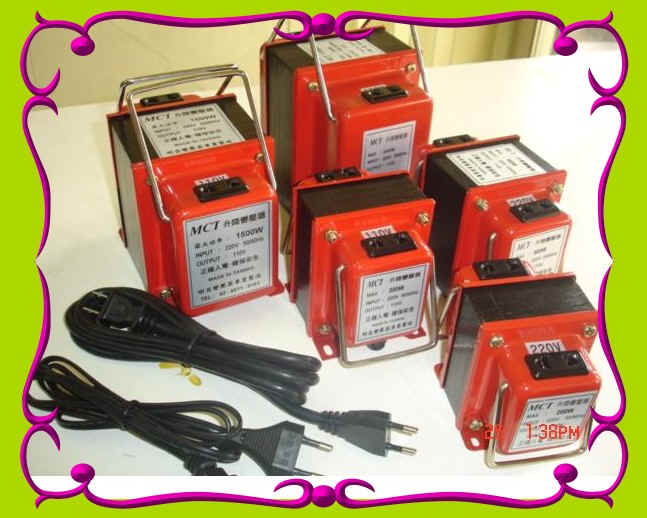

Outlet type series transformer 插座型變壓器
適用範圍： 電源轉換用變壓器
功能特點： 安全性佳、攜帶方便
承製範圍：100VA-3KVA
|
規格 |
220V/110V |
220V/110V |
220V/110V |
220V/110V |
220V/110V |
220V/110V |
220V/110V |
220V/110V |
|
容量 |
100 W |
200 W |
300 W |
500 W |
1 KVA |
1.5 KVA |
2 KVA |
2.5 KVA |
| Part No. | Voltage | Ampere | Capacity | Measure (m/m) |

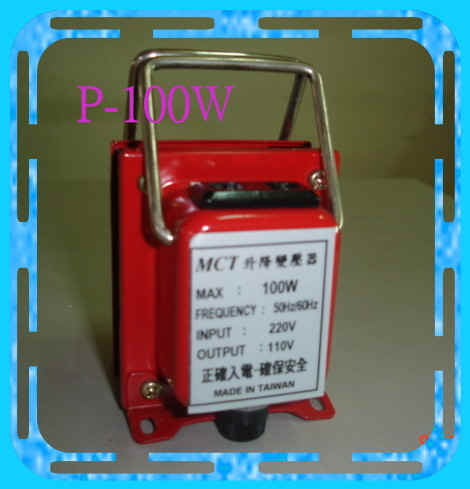

| G-P0100 |
220V/110V |
1A | 100W | 70*90*85 |
| G-P0200 | 220V/110V | 2A | 200W | 78*110*95 |
| G-P0300 | 220V/110V | 3A | 300W | 85*115*105 |

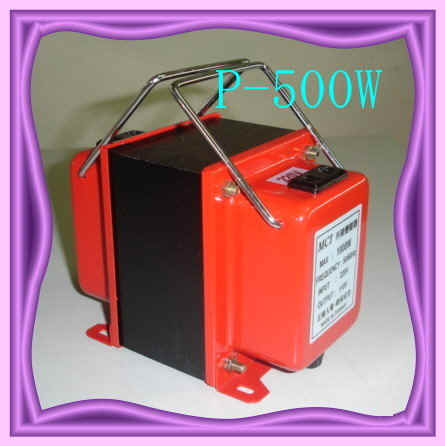

| G-P0500 | 220V/110V | 5A | 500W | 85*120*105 |
| G-P1000 | 220V/110V | 10A | 1000W | 100*160*120 |
| G-P1500 | 220V/10V | 15A | 1500W | 120*155*140 |

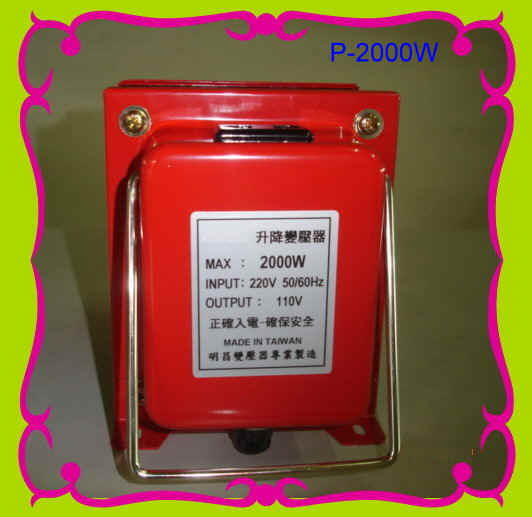

| G-P2000 | 220V/110V | 20A | 2000W | 120*175*140 |
| G-P2500 |
220V/110V |
25A | 2500W | 120*195*144 |
| G-PZ0500 | 110V-100V | 5A | 500W | 70*90*85 |
| G-PZ1000 | 110V-100V | 10A | 1000W | 85*115*105 |
| G-PZ1500 | 110V-100V | 15A | 1500W | 85*120*105 |
| G-PZ2000 | 110V-100V | 20A | 2000W | 100*140*120 |

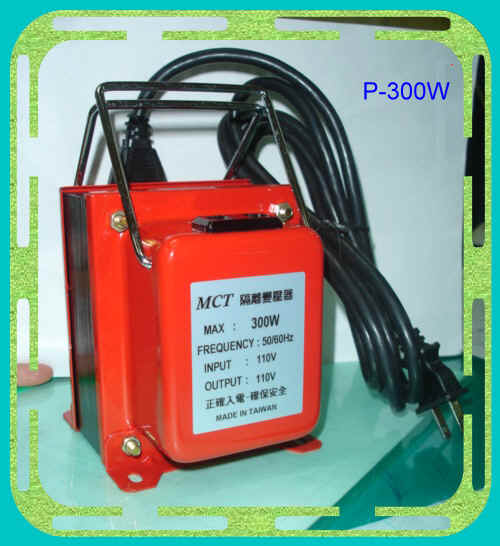

| G-PG0300 | 110V-110V | 3A | 300W | 100*140*120 |
| G-PG0500 | 110V-110V | 5A | 500W | 100*160*120 |
| G-PG1000 | 110V-110V | 10A | 1000W | 120*175*140 |
Remarks: [This series products all be designed as the function of two-way ]
1. G-P0100~G-P2500 ( 110V-220V)
2. G-PZ0500 (110V-100V) Japanese electric appliance.
3. G-PG0300 (110V-110V) separating type transformer.
註：附雙插頭電源線
