BT-BL Series Transformer  [Standard list]



 Part No.

             Voltage

 Ampere Measure
G-BT- 0.25A-1    220V/110V      0.25A 72*44*51

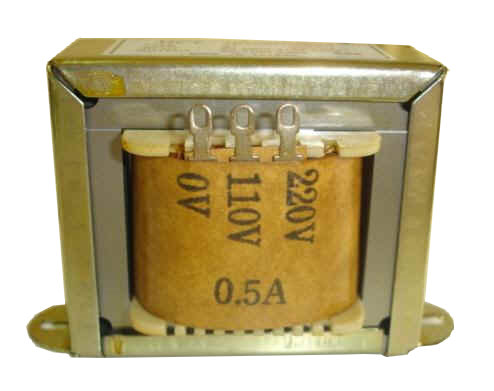

G-BT- 0.5A-1   220V/110V       0.5A 81*59*59
G-BT-1A-1   220V/110V      1A 90*66*70
G-BT- 2A-1   220V/110V      2A 104*83*76
G-BL- 1A   220V/110V       1A 90*66*70

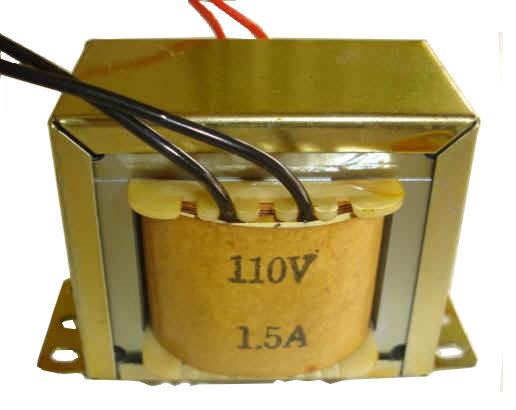

G-BL- 1.5A 220V/110V    1.5A 90*78*70
G-BL- 2A 220V/110V     2A 104*83*76
G-BT- 0.125A 0-110-220／0-6-12-24        0.125A 53*38*37

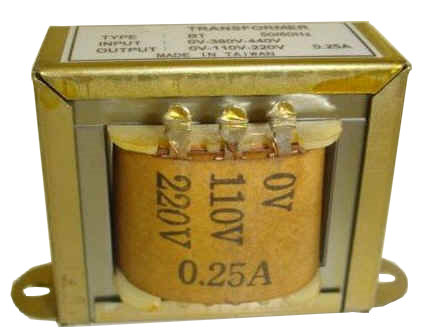

G-BT- 0.25A 0-110-220／0-6-12-24       0.25A 62*43*43

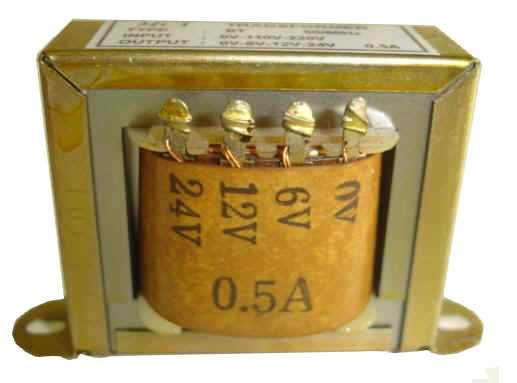

G-BT- 0.5A 0-110-220／0-6-12-24       0.5A 72*44*51
G-BT- 1A 0-110-220／0-6-12-24       1A 81*59*59
G-BT- 2A 0-110-220／0-6 -12-24      2A 90*66*70
G-BL- 3A 0-110-220／0-6-12-24        3A 104*83*76
G-BT- 0.25A-2 0-380-440／0-110-220     0.25A 81*59*59
G-BT- 0.5A-2          0-380-415-440／0-110-220         0.5A 90*66*70
G-BT-1A-2     0-380-415-440／0-110-220     1A 104*83*76

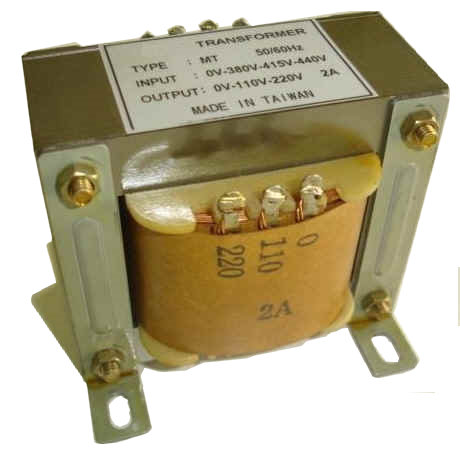

G-MT-2A      0-380-415-440／0-110-220     2A 104*95*76
G-BT-1A-3 380V/24V    1A 81*59*59
G-BT-1A-4   220V/24V      1A 81*59*59
G-BL- 2A-1 220V/24V      2A 90*66*70

Remarks: 1. BT-Soldered slice with copper nail and iron belt.

2. BL-lead with iron belt.

3. MT-Soldered slice with copper nail + L type Iron.

If you have any inquiry, please contact with us: E-mail   valiuco@yahoo.com valiuco@hotmail.com
